Hebei Jinwo Machinery Technology Co., Ltd. is one of the leading manufacturers and suppliers of idu series hydraulic double-acting piston seal in China. With abundant experience, we warmly welcome you to buy bulk durable idu series hydraulic double-acting piston seal in stock here from our factory. All customized products are with high quality and competitive price. Contact us for quotation.

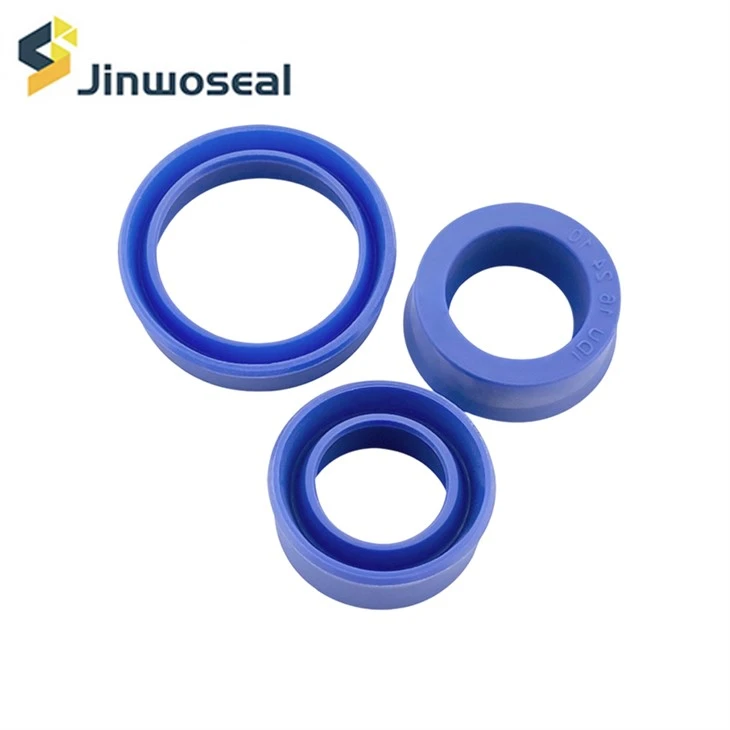

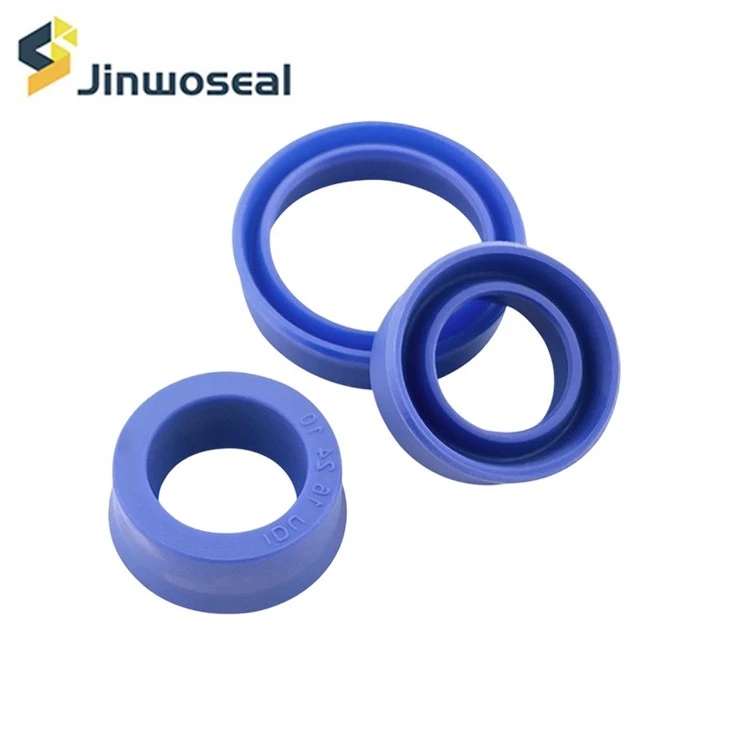

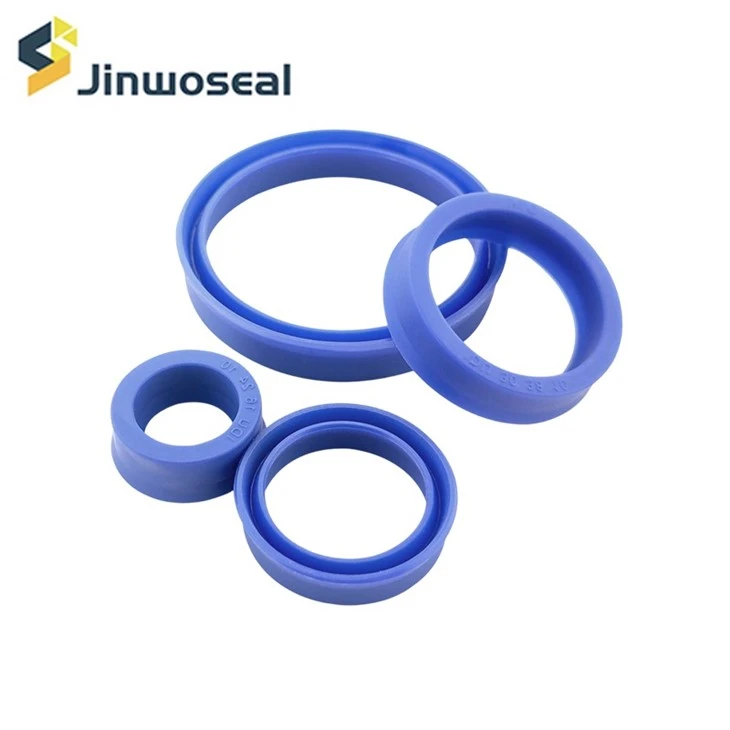

The IDU Series Hydraulic Double-Acting Piston Seal is a premium sealing solution engineered for high-pressure hydraulic cylinders. Crafted from durable materials like TPU or FKM, it ensures exceptional wear resistance and reliability in construction, agricultural, and industrial machinery, providing superior performance and long-lasting protection for your heavy-duty hydraulic systems.
General performance parameters
|
Parameter |
Specifications |
|
Material |
TPU, FKM, NBR (or customized per requirements) |
|
Temp. |
-35°C to +110°C |
|
Work Pressure (Max. Pressure) |
≤ 35 MPa |
|
Run Speed (Max. Speed) |
≤ 0.5 m/s |
|
Media |
Hydraulic oils, emulsions, water-glycol |
|
Structure Type |
Double-Acting Symmetrical Piston Seal |
|
Application |
Construction machinery, heavy-duty trucks, hydraulic cylinders |
Specifications Table
| No. | Part No. | Inner Diameter d (mm) | Outer Diameter D (mm) | High H (mm) | Material |
| 1 | IDU-016-024-10 | 16 | 24 | 10 | TPU/FKM/NBR |
| 2 | IDU-020-028-08 | 20 | 28 | 8 | TPU/FKM/NBR |
| 3 | IDU-020-030-10 | 20 | 30 | 10 | TPU/FKM/NBR |
| 4 | IDU-025-035-10 | 25 | 35 | 10 | TPU/FKM/NBR |
| 5 | IDU-025-035-12 | 25 | 35 | 12 | TPU/FKM/NBR |
| 6 | IDU-028-038-10 | 28 | 38 | 10 | TPU/FKM/NBR |
| 7 | IDU-030-040-10 | 30 | 40 | 10 | TPU/FKM/NBR |
| 8 | IDU-032-042-10 | 32 | 42 | 10 | TPU/FKM/NBR |
| 9 | IDU-035-045-10 | 35 | 45 | 10 | TPU/FKM/NBR |
| 10 | IDU-040-050-10 | 40 | 50 | 10 | TPU/FKM/NBR |
| 11 | IDU-040-055-12 | 40 | 55 | 12 | TPU/FKM/NBR |
| 12 | IDU-045-055-10 | 45 | 55 | 10 | TPU/FKM/NBR |
| 13 | IDU-045-060-12 | 45 | 60 | 12 | TPU/FKM/NBR |
| 14 | IDU-050-060-10 | 50 | 60 | 10 | TPU/FKM/NBR |
| 15 | IDU-050-065-12 | 50 | 65 | 12 | TPU/FKM/NBR |
| 16 | IDU-055-065-10 | 55 | 65 | 10 | TPU/FKM/NBR |
| 17 | IDU-055-070-12 | 55 | 70 | 12 | TPU/FKM/NBR |
| 18 | IDU-060-070-10 | 60 | 70 | 10 | TPU/FKM/NBR |
| 19 | IDU-060-075-12 | 60 | 75 | 12 | TPU/FKM/NBR |
| 20 | IDU-063-073-10 | 63 | 73 | 10 | TPU/FKM/NBR |
| 21 | IDU-065-080-12 | 65 | 80 | 12 | TPU/FKM/NBR |
| 22 | IDU-070-080-10 | 70 | 80 | 10 | TPU/FKM/NBR |
| 23 | IDU-070-085-12 | 70 | 85 | 12 | TPU/FKM/NBR |
| 24 | IDU-075-090-12 | 75 | 90 | 12 | TPU/FKM/NBR |
| 25 | IDU-080-095-12 | 80 | 95 | 12 | TPU/FKM/NBR |
| 26 | IDU-085-100-12 | 85 | 100 | 12 | TPU/FKM/NBR |
| 27 | IDU-090-105-12 | 90 | 105 | 12 | TPU/FKM/NBR |
| 28 | IDU-095-110-12 | 95 | 110 | 12 | TPU/FKM/NBR |
| 29 | IDU-100-115-12 | 100 | 115 | 12 | TPU/FKM/NBR |
| 30 | IDU-110-125-12 | 110 | 125 | 12 | TPU/FKM/NBR |
| ... | Other specifications and custom sizes | models or for custom production | - | - | - |
Product Description
🔧 Technical Performance
The IDU Series Hydraulic Double-Acting Piston Seal is designed for reliable sealing in hydraulic cylinders under bidirectional pressure. Made from high-performance materials, it provides excellent leakage control, low friction, wear resistance, and stable operation in demanding hydraulic environments.
🏭 Manufacturing & Quality Control
The IDU Series Piston Seal is manufactured with precision molding technology and strict quality inspections. Each product undergoes dimensional checks, material testing, and sealing performance verification to ensure consistent quality, accurate fitting, and dependable service life.
🌍 Trade & Supply Solutions
We provide flexible supply solutions for hydraulic equipment manufacturers, distributors, and service providers worldwide. With stable production capacity, customized options, and efficient logistics support, we ensure reliable delivery and long-term cooperation.
⭐ Product Advantages
The IDU Series Hydraulic Double-Acting Piston Seal offers excellent sealing performance, durability, and compatibility with various hydraulic systems. It helps reduce leakage, improve equipment efficiency, and provide a reliable sealing solution for industrial applications.
Why Choose Jinwo - Precision Integration for Hydraulic Systems
⭐ Quality Assurance
Jinwo provides high-quality sealing products with strict quality control processes. Every product is tested to ensure reliable performance, durability, and consistent standards for global customers.
🔧 Advanced Manufacturing
With advanced production technology and professional expertise, Jinwo delivers precision-engineered sealing solutions designed to meet various industrial and automotive requirements.
🌍 Reliable Supply
Jinwo offers stable supply capacity, flexible customization, and efficient logistics services to support customers worldwide with timely delivery and long-term cooperation.
🤝 Customer Focus
Jinwo is committed to providing professional service, competitive solutions, and dependable products to help customers achieve greater market success.
