Introduction of Hydraulic Seals in Cylinder Application


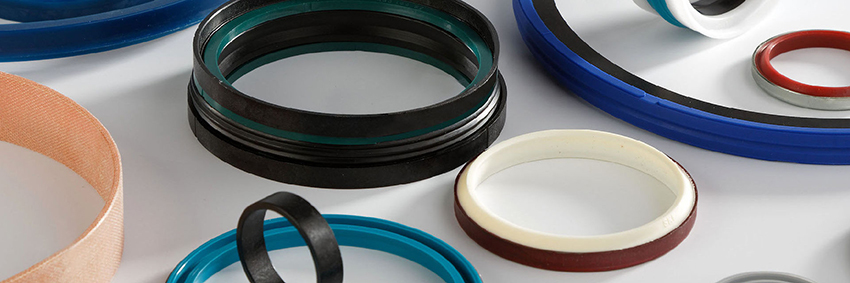

Hydraulic cylinder seals are used to seal the opening between various components in the hydraulic cylinder. shows an example of the seal and guide components of a heavy duty cylinder. There are two main types of hydraulic seals in the system:


Dynamic seals

They seal between components in relative motion. In a hydraulic cylinder the rod sealing system seals dynamic reciprocating motion between the piston rod and head, while the piston sealing system seals dynamic reciprocating motion between the piston and cylinder bore.


Static seals

They seal between components fixed together without relative motion. Hydraulic cylinders use static seals in various locations depending on the design and construction. The most common are static seals between the piston and piston rod and between the head and cylinder bore tube.


Each dynamic seal in a hydraulic cylinder has a special function to contribute to the performance of the system


Piston seal functions

act as pressure barrier and prevent fluid passing the piston – important for controlling the cylinder motion or maintaining the position when at rest.


Rod seal functions

act as pressure barrier and keep the operating fluid inside the cylinder

regulate the fluid film which extends with the surface of the piston rod – important to inhibit rod corrosion and to lubricate the wiper seal and the rod seal itself.


Buffer seal functions

protect the rod seal from fluid pressure peaks in excess of system pressure.


attenuate the fluctuations in system pressure, thereby improving rod seal performance by allowing the rod seal to deal with more constant or gradually changing pressure.

act as an internal excluder to keep system contaminants, such as metal particles, from damaging the rod seal


Wiper seal functions

exclude external contaminants from entering the cylinder assembly and the hydraulic system accept the lubrication film back into the cylinder when the rod retracts.
