Understanding the Essential Function of a Back-Up Ring
A hydraulic seal's worst enemy is often the extrusion gap. When system pressure spikes, the elastomer O-ring or lip seal can be forced into the clearance between the piston and bore or the rod and gland. That is where a back-up ring becomes indispensable. Placed on the low-pressure side of the primary seal, it physically blocks the gap and prevents nibbling, shredding, and catastrophic blow-by. Without a properly specified back-up ring, even the finest polyurethane U-cup will suffer edge fractures after limited cycles. Many field technicians discover too late that a missing anti-extrusion ring was the root cause of a sudden seal failure in a high-pressure hydraulic cylinder. Its job is simple but critical: hold the seal in its groove geometry and keep the elastomer away from the metal edges that would otherwise chew it apart.
Selecting the Correct Back-Up Ring Material for Your Application
Matching Elastomeric Back-Up Ring to Fluid Type
Material compatibility dictates service life. A nitrile rubber back-up ring works well in petroleum-based oils at moderate temperatures, but the same part degrades rapidly in a phosphate ester fire-resistant fluid. In such cases, an EPDM back-up ring for phosphate ester fluids becomes essential to avoid swelling and softening. For high-temperature circuits running above 120°C, fluorocarbon options shine; however, when the application also involves aggressive chemicals, PTFE or PEEK back-up ring materials are mandatory. Nylon and filled PTFE excel in zero-lubricity media and can handle the side loads often seen in telescopic cylinder back-up ring installations. Always cross-reference the safety data sheet of the hydraulic medium before choosing, because a swollen anti-extrusion backup ring loses its hardness and will no longer bridge the extrusion gap effectively.
Proper Back-Up Ring Sizing and Groove Design
Calculating the Back-Up Ring Groove Width for High Pressure
A back-up ring is not a one-size-fits-all accessory. The groove must be wide enough to accommodate both the seal and the back-up ring without compressive binding, yet tight enough to prevent them from rolling. A useful rule of thumb in heavy equipment hydraulics is to add the back-up ring's maximum cross-section plus 0.2–0.4 mm to the seal groove width. Ignoring this back-up ring groove width calculation often leads to pinched seals or premature extrusion. Additionally, the gland depth must maintain proper squeeze on the primary seal while allowing the back-up ring to float slightly. For split scarf-cut designs, the groove edges should be chamfered lightly so the cut ends don't catch during assembly. The difference between a lasting seal package and a repeat failure frequently comes down to whether the back-up ring thickness calculation was done with real measured clearances rather than nominal catalog values.
The Critical Role of Back-Up Ring Hardness and Durometer
Hardness is the back-up ring's armor. A Shore D 55–65 PTFE back-up ring is common for general industrial hydraulics, but long-stroke cylinders with high side loading benefit from a harder Shore D 70–75 grade. When the backup ring is too soft, it extrudes just like the seal it was supposed to protect. Yet excessive hardness can prevent the split back-up ring from conforming perfectly to the groove, leaving a spiral leakage path. In mobile hydraulics exposed to frequent pressure reversals, a 90 Shore A elastomeric back-up ring often strikes the right balance between extrusion resistance and flexibility. Monitoring durometer after a thermal shock event is a quick way to spot latent damage; a drop of just 5 points on the Shore scale indicates that the anti-extrusion ring has started to degrade internally.
Installation Best Practices for a Back-Up Ring
The Split Back-Up Ring Advantage for Piston Seals

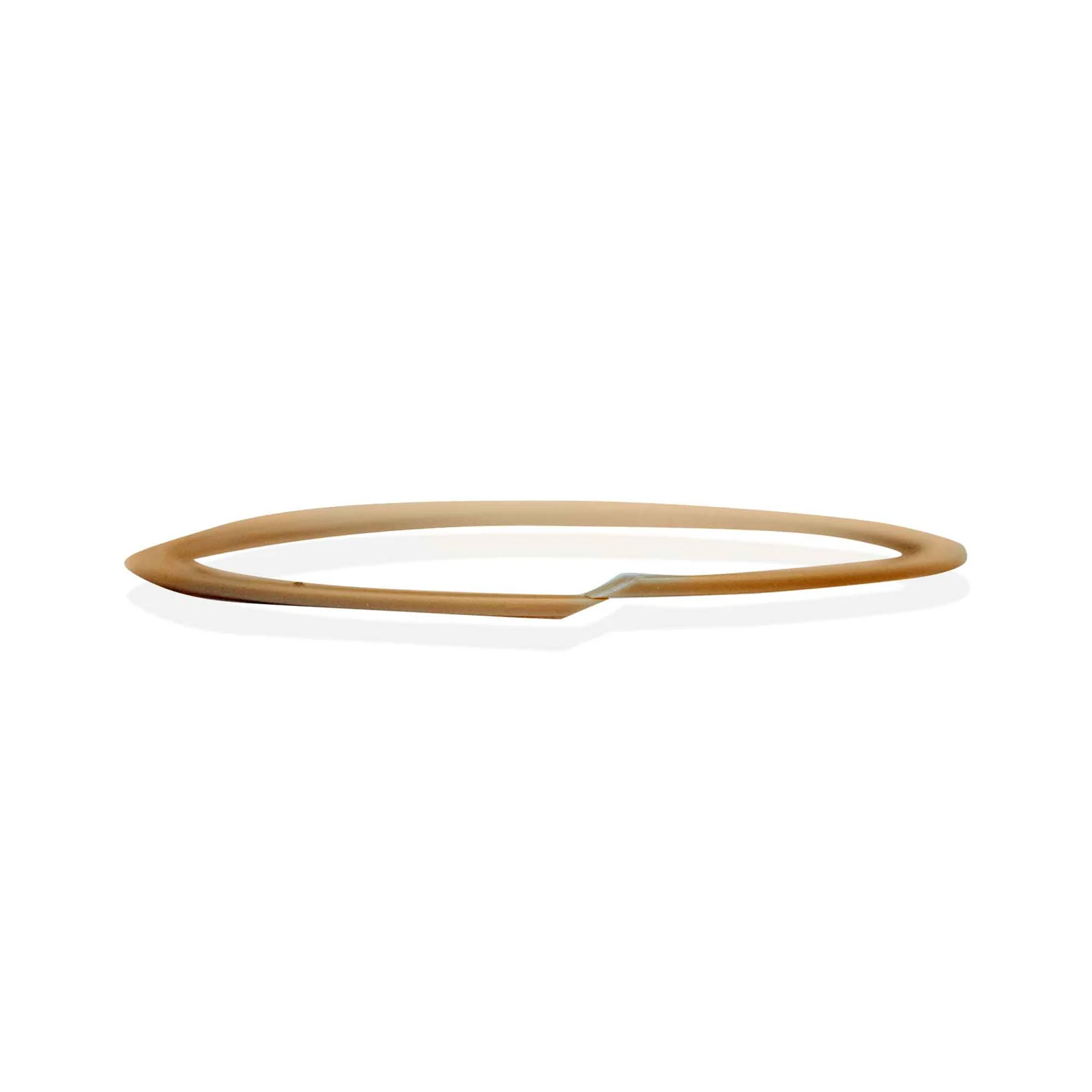

Installing a solid back-up ring inside a closed bore is practically impossible, which is why the split back-up ring exists. Its scarf or step cut allows it to be spiraled into position without overstretching. When replacing the piston seal on an excavator boom cylinder, a scarf-cut split back-up ring for piston seal grooves can reduce installation time by half and eliminate the risk of twisting. Always use smooth, rounded installation tools; a sharp pick will score the back-up ring's surface, and that micro-scratch becomes a leak path at 350 bar. Temperature matters, too: a cold PTFE backup ring can be stiff and hard to manipulate, so warming the part to around 40°C before fitting helps it settle cleanly into the gland without permanent set.
Avoiding Common Installation Damages to the Back-Up Ring
Even experienced fitters can inadvertently slice a back-up ring if the rod or piston end is not deburred. A single burr on the port thread or the keyway edge will peel a sliver off the anti-extrusion ring during insertion, and that sliver will later migrate into the hydraulics. The focus should be on edge-free handling, adequate lubrication with the system fluid, and never using a back-up ring that has been forced past a sharp shoulder. Another overlooked point is storage: elastomeric back-up rings stored in direct sunlight or near an ozone-generating electric motor will develop hairline cracks long before they are ever installed, setting the stage for an unpredictable blowout.
Back-Up Ring Orientation and Positioning in the Gland
Always Check the Back-Up Ring Scarf Cut Direction
Positioning is just as vital as sizing. A back-up ring must sit on the side of the seal opposite the pressure source; placing it on the wrong side turns it into a debris trap that accelerates seal wear. For a double-acting piston, this means two back-up rings-one protecting each side of the center seal. When using a scarf-cut split back-up ring, the cut must face away from the seal lip to prevent the seal from being drawn into the gap. A common field failure involves a properly dimensioned back-up ring that was installed with its scarf cut rotated 180 degrees, causing immediate extrusion of the O-ring energizer. Always pause and visualize the pressure vector before closing the gland.
Using a Back-Up Ring with Different Seal Types
Not every seal requires the same approach to backup. An O-ring and back-up ring assembly remains the classic combination for static and slow dynamic applications, but modern compact lip seals often integrate a molded-in heel that acts as a back-up ring. Still, in rod seals for large-diameter cylinders, adding a separate anti-extrusion backup ring greatly extends the life of the primary polyurethane U-cup by preventing the heel from peeling under side load. For piston rings in rotary hydraulic motors, PTFE wedge-shaped back-up rings paired with a square energizer provide the best stability. The key is never to mix materials blindly; a PTFE back-up ring mated with a NBR O-ring works elegantly, whereas an identical PTFE ring behind a silicone seal may lead to excessive friction and slip-stick.
Preventing Extrusion with a Well-Engineered Back-Up Ring
Reducing the Extrusion Gap with a PEEK Back-Up Ring
When cylinder pressures exceed 400 bar and operating temperatures top 150°C, traditional filled PTFE backup rings can start to cold-flow. This is the domain where a PEEK back-up ring extrusion resistance comes into its own. Its high modulus allows a slightly larger permissible extrusion gap without sacrificing anti-extrusion performance, which can be a game-changer for deep-sea hydraulic tools where cylinder wall thickness is constrained. Downgauging the clearance by selecting a higher-modulus back-up ring is often cheaper than redesigning the entire piston. Field engineers dealing with shock-loaded presses commonly upgrade from a standard nylon back-up ring to a PEEK version and immediately see the scrap rate of seal kits drop.
Temperature and Chemical Compatibility of Your Back-Up Ring
Nitrile Rubber Back-Up Ring for Low Temperature Sealing
Cold-weather hydraulics pose unique challenges. At -35°C, many thermoplastic backup rings become brittle, and ordinary nitrile stiffens dramatically. A specially compounded low-acrylonitrile nitrile rubber back-up ring for low temperature sealing remains pliable well below -40°C, making it ideal for ski-lift hydraulics and Arctic mining shovels. On the hot side, a silicone back-up ring can handle 200°C dry heat but swells badly in hydrocarbon oil; such a ring belongs only in specific hot-air or external brake caliper environments. Always ask for the material's glass transition temperature and volume swell data in your specific fluid, because a back-up ring that looks perfect on the shelf can dissolve into a gummy mess within three cycles if the chemical compatibility chart was ignored.
Back-Up Ring Maintenance and Inspection Intervals
Inspect for Back-Up Ring Spiral Failure After Pressure Peaks
Many maintenance crews replace the soft sealing element but reuse the hard plastic back-up ring, believing it does not wear. This is a false economy. A back-up ring subjected to a severe pressure spike often develops spiral twists or radial cracks that are invisible without a 10x magnifier. During planned downtime, pull the backup ring, clean it with isopropyl alcohol, and look for the characteristic chevron-shaped extrusion marks on its downstream face. If a back-up ring shows any sign of permanent deformation or surface brinelling, it must be discarded. Documenting these inspections builds a reliable failure-prevention timeline for your hydraulic cylinder back-up ring clearance management plan.
Troubleshooting Back-Up Ring Failure Modes
When a Back-Up Ring Hardness Upgrade Solves Chronic Wear
A back-up ring that constantly disintegrates on one side of a double-acting cylinder almost always indicates a hardness mismatch or an oversized extrusion gap. In a recent case involving a mining truck hoist, swapping from a 55D PTFE backup ring to a 65D filled-PTFE grade stopped the telltale nibbling that occurred only during the lowering stroke. If the failure appears as a cleanly sheared flat, the anti-extrusion ring likely saw pressure from the wrong side due to a drilling error in the manifold. A blackened, brittle remnant points to fluid incompatibility or localized hot-oil erosion. Systematically recording these failure signatures makes future back-up ring selection far more accurate.
Upgrading Legacy Systems with Modern Back-Up Ring Designs
Older hydraulic presses often run clearance levels that were acceptable for leather and asbestos packing but are deadly for modern elastomers. Retrofitting these machines with a modern, narrow-footprint back-up ring can bridge the oversized gap without a costly re-bore. Glass-filled nylon and advanced PTFE compounds now allow a drop-in anti-extrusion ring that compensates for up to 0.5 mm of radial wear. The upgrade not only stops leaks but frequently reduces friction, because the new back-up ring profile is optimized for lower break-out force. When a complete cylinder overhaul is postponed, a wise technician will at least install fresh back-up rings to buy several hundred more operating hours.
The Cost-Benefit of High-Performance Back-Up Ring Materials
A premium PEEK or filled-PTFE back-up ring may cost five times more than a basic nitrile one, but in critical service the return is massive. Calculate the expense of one unscheduled boom-lowering failure on a crawler crane-the oil loss, the safety incident report, the crew downtime-and the extra cost of a high-modulus backup ring becomes negligible. Over a 10,000-hour rebuild interval, a properly specified anti-extrusion ring that prevents just one burst hose or cylinder scoring will have paid for itself more than twentyfold. Value engineering should focus on the cost per hour of seal integrity, not the unit price of a single back-up ring.
Future Trends in Back-Up Ring Technology for Hydraulics
Smart back-up rings embedded with passive wear-indicating layers are currently being field-tested in forestry harvesters. These rings change color at a predetermined wear depth, giving a visual alert without any disassembly. Additive manufacturing is also enabling custom back-up ring profiles with gradient hardness, combining a tough, extrusion-resistant outer surface with a more compliant inner core. As biodegradable hydraulic fluids become mainstream, the demand for hydrolysis-resistant back-up ring materials that will not swell in synthetic esters is accelerating. The back-up ring may be the simplest-looking component in a hydraulic sealing system, but its evolution is anything but simple.
