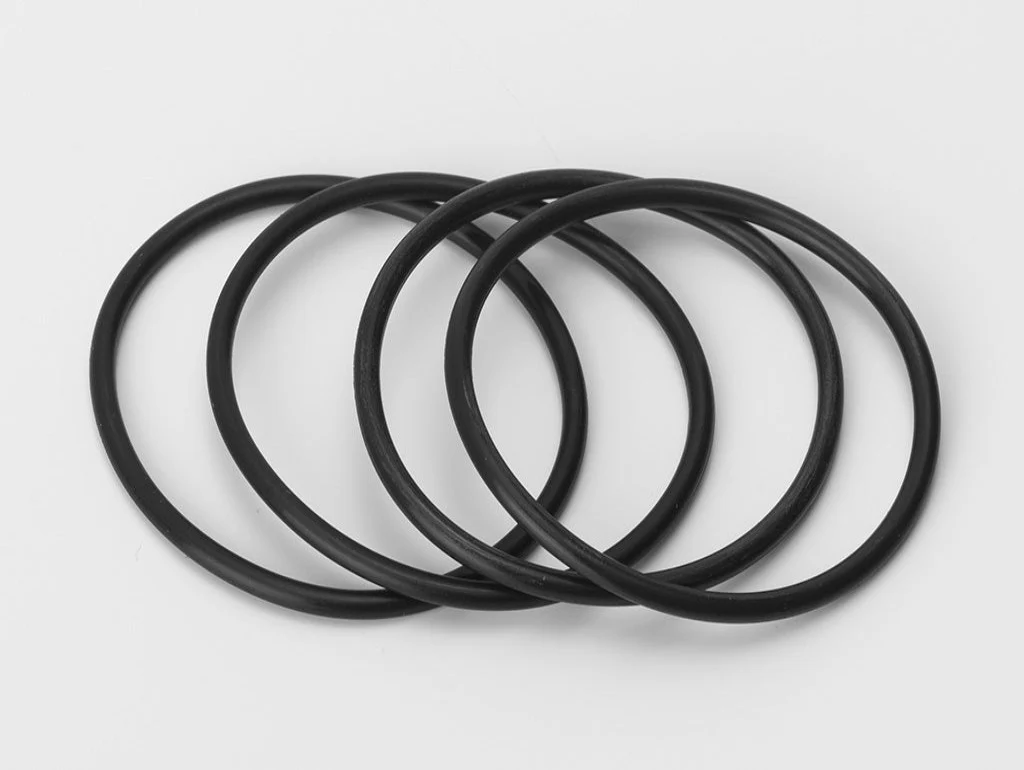

Types Of O-Rings: Sealing Solutions For Diverse Industrial Needs

From the sleek hydraulics of an excavator arm to the sterile processing lines of a pharmaceutical plant, the versatility of the O-ring shapes modern sealing technology. Choosing the right elastomeric loop often comes down to niche demands such as sub-zero flexibility or resistance to aggressive amine-based corrosion inhibitors. An O-ring is not just a circular part; it functions as a precision O-ring element that must maintain its cross-section compression despite pressure peaks and thermal expansion. The failure mode analysis of countless O-ring glands reveals that a misunderstanding of the O-ring polymer backbone leads directly to a blown O-ring and costly downtime. This overview examines common O-ring categories as dedicated sealing solutions for diverse industrial needs, emphasizing how each O-ring type resolves a particular extrusion or chemical degradation challenge.

Nitrile butadiene rubber remains the most widely produced O-ring material, delivering reliable O-ring performance in hydraulic oil and fuel circuits. The secret to this O-ring success lies in acrylonitrile content; a medium-to-high nitrile O-ring offers good tensile strength while a low-nitrile O-ring variant becomes the preferred low-temperature O-ring for refrigeration compressors. When a hydraulic cylinder O-ring sizing chart recommends a standard 70 Shore A hardness, the maintenance engineer can trust a nitrile O-ring to resist cold flow. However, this O-ring swells badly in ketones and ozone-rich atmospheres, limiting its O-ring application envelope to well-sealed gearboxes and diesel fuel injection O-ring glands.

Fluoroelastomer O-ring technology excels where a standard nitrile O-ring would quickly embrittle. A Viton O-ring can routinely handle sustained 220 °C air and exposure to aromatic fuels, making it the definitive O-ring for turbocharger oil drains and aggressive chemical injection quills. The fluorine content gives this O-ring an inertness that prevents the O-ring from reacting with sour gas or oxidized engine oil, so the O-ring retains its elasticity rather than turning into a hard O-ring disk. Engineers often specify a bisphenol-cured Viton O-ring when they need an O-ring that keeps a low compression set value during prolonged shutdowns, directly preserving the O-ring seal on warped exhaust gas recirculation flanges.

Silicone's extreme low-temperature O-ring capability, stretching to -60 °C without stiffening, makes it an exceptional O-ring for cryogenic sample handling and outdoor electrical enclosures. As a medical-grade O-ring, platinum-cured silicone avoids peroxide residues, satisfying the biocompatibility O-ring standard for implantable pump diaphragms. The inherent lubricity of this O-ring also enables smooth dynamic O-ring movement in peristaltic dispensing pumps, preventing the O-ring from sticking and chunking. Nevertheless, the low tear resistance of a silicone O-ring means that it functions best as a static O-ring in sanitary clamp ferrule joints, never as an exposed dynamic O-ring in abrasive slurry valves.

Ethylene propylene diene monomer O-rings thrive where ozone, steam, and phosphate ester attack swiftly destroy a nitrile O-ring. An EPDM O-ring is the standard O-ring for automotive brake calipers because it does not swell in DOT 3 or DOT 4 glycol fluids, preserving the O-ring sealing force even after years of thermal cycling. Its excellent UV and weather resistance make this O-ring a long-life O-ring for outdoor pneumatic quick-connect couplings. Peroxide-cured EPDM O-rings, specifically, eliminate sulfur bloom and give the O-ring a cleaner surface, critical when the O-ring is used in a vacuum O-ring groove where outgassing could contaminate sensitive relay contacts.

Hydrogenated nitrile O-rings bridge the gap between nitrile's oil compatibility and Viton's thermal endurance. An HNBR O-ring withstands biodiesel methyl esters and up to 165 °C, making it the go-to O-ring for common-rail diesel injector return lines. In oilfield downhole tools, a specially formulated HNBR O-ring resists explosive decompression, preventing internal blistering when high-pressure gas charged into the O-ring matrix expands during retrieval. This O-ring maintains its O-ring dimensional stability, and adding a backup ring O-ring combination further prevents extrusion, making the HNBR O-ring assembly a blowout-proof O-ring seal for geothermal mud pulse telemetry.

Moving from a round to a square O-ring cross-section creates an anti-roll O-ring that cannot spiral-twist in a fast-cycling pneumatic spool valve. The square O-ring offers a broader sealing footprint, distributing the O-ring compression stress and dramatically reducing the O-ring's tendency to nibble at the extrusion gap. A micro-textured square O-ring can function as a labyrinth O-ring, extending the leak path of helium in vacuum-brake boosters without raising O-ring installation force. For technicians repairing high-frequency solenoid valves, swapping a circular O-ring for a square O-ring often cures chronic O-ring leakage that stems from seal rolling.

When an O-ring must face fuming nitric acid or peracetic acid sterilant, a PTFE-encapsulated O-ring provides universal chemical resistance. The FEP or PFA jacket transforms the O-ring into an inert O-ring shell, allowing a Viton or silicone core O-ring to provide the bounce while the encapsulating layer shields the O-ring elastomer from attack. In deep-vacuum O-ring applications, a double-bossed encapsulation O-ring prevents the permeation blistering that would otherwise delaminate the jacket, so the O-ring stays intact as a high-purity O-ring seal for semiconductor wet-bench plumbing.

The combination of silicone cold-flex and fluorocarbon fuel resistance yields a fluorosilicone O-ring essential for aerospace bleed air modulation. This O-ring remains elastic at -55 °C and does not disintegrate when aromatic kerosene mist condenses on the O-ring surface during high-altitude idle. A fluorosilicone O-ring preserves a stable Shore A O-ring hardness from a winter-soaked tarmac to a hot turbine casing, preventing the O-ring from extruding into the poppet clearance that a purely silicone O-ring would rapidly fill. In static O-ring face seals on fuel control units, this O-ring bridges the performance gap left by both nitrile and Viton O-rings.

Tetrafluoroethylene-propylene copolymer O-rings, often called Aflas, excel as the O-ring selection for geothermal wellhead valving where superheated brine, hydrogen sulfide, and amine corrosion inhibitors converge. An Aflas O-ring resists autoclave-like conditions that revert a standard EPDM O-ring to a sticky paste, thus the Aflas O-ring maintains sealing integrity in steam-assisted gravity drainage control valves. The O-ring also withstands the high-pH amine-based solvents used to scrub sour gas, positioning the Aflas O-ring as the definitive oilfield O-ring when both steam and chemical resistance define the O-ring's service environment.

Cast polyurethane delivers phenomenal toughness in a dynamic O-ring role, functioning as a wiper O-ring or buffer O-ring in heavy-duty hydraulic hammer cylinders. The cut-tear propagation resistance of a 95 Shore A polyurethane O-ring allows it to shrug off the sharp carbon flakes that quickly chunk a softer O-ring. This O-ring resists the abrasive action of contaminated oil, so the O-ring often serves as a rod wiper O-ring in mining props where fine silica dust packs into the gland. While hot-water hydrolysis limits the O-ring to dry, well-cooled cylinder heads, a properly specified polyurethane O-ring dramatically extends the life of the primary hydraulic O-ring seal.
