Key Features of O-Rings: A Reliable Choice for Industrial Sealing

Industrial sealing hinges on components that deliver absolute reliability under punishing conditions. Among them, O-rings stand out for their elegant simplicity and exceptional versatility. These toroidal elastomeric seals prevent leakage in everything from hydraulic cylinders to implantable medical devices. This article dives into the key features of O-rings that make them a preferred industrial choice, examining material behavior, groove design subtleties, and practical maintenance insights.

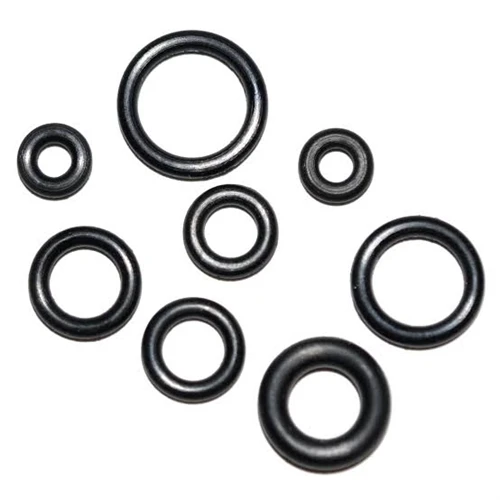

An O-ring is a doughnut-shaped elastic loop that sits in a machined groove, compressing between two parts to form a tight barrier. Its magic is self-energization: as internal pressure increases, the ring is forced harder against the gland wall, boosting sealing force. Unlike rigid gaskets, O-rings forgive minor surface flaws and require no precise torque. This makes them ideal for both vacuum and high-pressure hydraulic o-ring applications. Even a simple rubber o-ring can seal thousands of psi when installed within a properly designed groove, underscoring why they are the go-to industrial sealing ring.

Nitrile (NBR) O-rings dominate petroleum-based fluid services due to their swell resistance and low cost. But push temperatures past 120°C, and fluorocarbon (FKM) compounds become essential. FKM O-rings provide high-temperature o-ring performance up to 200°C and fend off aromatic fuels that degrade NBR quickly. For deep-freeze applications, silicone O-rings retain pliability, though tear strength suffers. Engineers often consult a chemical compatibility chart for o-rings when handling mixed refrigerants or aggressive solvents to avoid sudden elastomeric breakdown. Perfluoroelastomer (FFKM) rings, while pricey, combine nearly universal chemical resistance with thermal stability for critical processes.

Even the finest O-ring fails without a correctly dimensioned groove. Any o-ring groove design guide stresses fill ratio-typically 75% for static seals-to allow for thermal swell while ensuring adequate squeeze. A too-shallow gland overcompresses the ring, inviting rapid compression set failure; an overly deep groove results in insufficient contact pressure, especially at low differentials. Surface finish matters immensely: 0.8–1.6 µm Ra on gland flanks prevents spiral failure of o-rings. For dynamic sealing, slightly wider grooves accommodate rolling motion. Using an o-ring sizing chart early in the design phase helps confirm that cross-section and inner diameter align with hardware constraints, avoiding costly rework.

O-rings seal both stationary and sliding interfaces, but dynamic service demands nuanced engineering. In static glands, the elastomeric ring simply sits compressed, often outliving the machinery. Dynamic o-ring applications-piston seals, rotating unions-introduce friction and wear. Too hard a compound creates excessive breakout friction, leading to stick-slip; too soft can cause the ring to twist and undergo spiral failure. Lubrication is critical, often supplied by the working fluid itself. For reciprocating rods, a subtle film enables the o-ring to glide without abrading. At high speeds, paired backup rings stop extrusion. Regular shore hardness inspections catch embrittlement before the seal loses its dynamic o-ring integrity.

When an o-ring fails, visual clues point to the culprit. Compression set failure shows as a permanently flattened profile that no longer rebounds, usually from excessive heat or overfill. Spiral failure of o-rings looks like diagonal cuts circling the seal-evidence of a twisted installation or rough gland surface. Extrusion indicates the elastomer is being forced into the clearance gap, a sign of high pressure or oversized clearance. Nibbling on the low-pressure side suggests backpressure issues. By interpreting these signals, maintenance crews can adjust groove dimensions, hardness, or add anti-extrusion backup rings to prevent recurring leaks.

Standard dash-number O-rings cover most needs, but oddball diameters or profiles call for custom solutions. Custom molded o-rings produced via compression molding suit low to medium volumes, while CNC-engraved molds rapidly serve prototyping runs. A custom molded o-rings manufacturer specializing in small batch production can deliver non-standard cross-sections without tooling amortization pain. In food and pharmaceutical sectors, USP Class VI silicone O-rings or EPDM parts must meet strict FDA criteria. Traceability reports on o-ring hardness and material certificates add confidence for regulated assemblies.

Elastomeric seals always absorb some fluid; controlled swelling can enhance sealing, but oversaturation weakens the matrix. A fluid compatibility o-ring reference is essential when switching to synthetic esters or biofuels. NBR O-rings balloon in HFD fluids, while EPDM crumbles in mineral oil. Chemical attack may manifest as a sticky surface or fissures. Even hot water can hydrolize certain FKM grades. By periodically measuring the o-ring's Shore A hardness and checking for swell, plants extend o-ring longevity considerably. Preemptive replacement based on condition monitoring avoids unplanned downtime.

Fitting mistakes ruin more O-rings than wear does. Always inspect for mold flash or nicks before installation. Apply a compatible lubricant-silicone grease for static seals, system fluid for hydraulics-to let the ring slide over threads without cutting. A single twist introduced during mounting will turn into spiral failure under pressure cycles. Assembly sleeves shield the o-ring from sharp port edges. For large-diameter vacuum O-rings, use a stepwise tightening pattern to achieve uniform compression. A low-pressure functional check confirms the seal's correct seating before full service.

Beyond 1500 psi, standard O-rings face extrusion into the gland clearance. Pairing them with anti-extrusion backup rings made of PTFE or PEEK is standard. The high pressure o-ring and backup ring arrangement bridges the gap, so the elastomer experiences only compressive stress. Proper backup ring thickness is critical; hydraulic o-ring sizing charts routinely specify matching backup dimensions. In impulse-load circuits, a softer 70 Shore A O-ring absorbs shock but demands a robust backup to prevent explosive blowouts. Routine inspection for missing or damaged backups can save an entire cylinder from catastrophic scoring.

Sustainability is reshaping polymer choices. Thermoplastic elastomer o-rings and bio-based EPDM compounds lower carbon footprints while offering chemical resistance comparable to conventional grades. Circular-economy initiatives are driving fluoroelastomer reclaim programs. Smart O-rings with embedded RFID tags enable lifecycle tracking and condition-based replacement. As hydrogen fuel cells and electric vehicle drivetrains expand, low-permeation and cryogenic o-ring seals become critical. While NBR and FKM remain workhorses, the next generation of O-rings will prioritize recyclability without compromising the reliable industrial sealing the world depends on.
